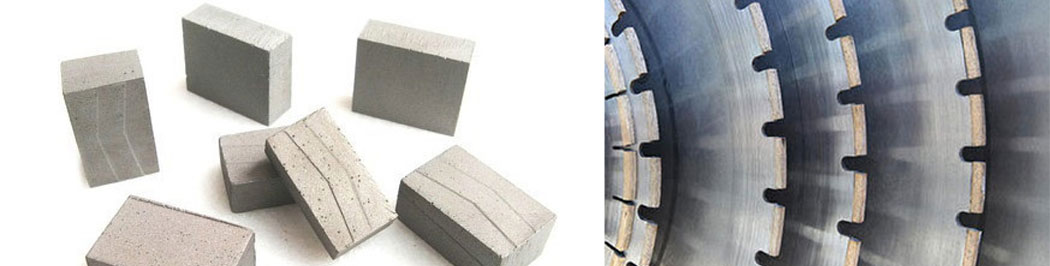

Apart from the normal segment production, we are making mini-multi segments as per customer requirements. The recent launch of mini multi blades is an opportunity for Reliance Diamond Tools to put up in the market a new design of circular saws, specially developed to get increase in production than mono blade. For this new technology, you need no to install setup but just modifying spindle the existing one/two meter circular saws, we can erect and install Mini Multi blades in your factory. It will certainly increase production without increasing production cost. RDT mini-multi blades are reliable, efficient and cost-effective for fast and smooth cutting of all stones in general and granite blocks in particular. One Mini-Multi blade set consists of the following:
Diameter (mm)
Segment Size (mm)
Blades (mm)
Nos/Set
length
thickness
height
thickness
dia of inner hole
1982
24
6/6.5
15
5.5
180
128
1582
24
6/6.5
15
5.5
180
108
1136
24
6/6.5
13
5.5
180
92
680
24
6/6.5
13
5.5
180
80
RDT developed & offer Mini-Multi blade (MMB) for
s
 Same man power ad for 2 MT blade circular sawing
s
 Production rate is double with same energy consumption
s
 Lower wastage with higher accuracy and better cutting performance
s
 Fewer changes in existing 2 MT machinery and setup
s
 Superior surface finish
We have a strong performance evaluation and customer feedback system. We will provide technical assistance so as to correctly understand and solve the customer’s needs and their requirement to achieve best performance and life of RDT tools. This, our presence on the ground allows a large choice of diamond tools for processing most of the stone available in India and overseas. A committed technical team undertakes the development of ever-higher performance of diamond wires and segments. In fact, we as a strong team of experienced and young & dynamic researchers and engineers to provide best tools for stone industry.
